Description

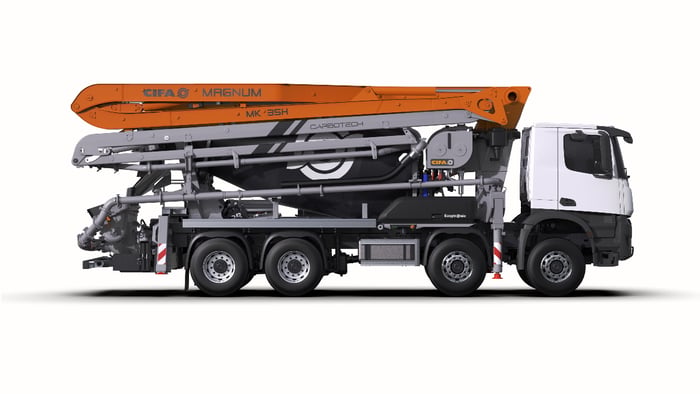

Top-of-the-range Magnum: 35 meters with Carbotech technology on the last two sections, 9 m³ IsoBM drum, and rear stabilization of just 2.7 m. The ultimate in compact design.
- Boom sections 4
- Boom length 35
- Nominal capacity 9 m³
Features
-
Magnum Series all-in-one: integrates concrete transport and pumping
-
Stabilization with a very reduced footprint
-
Open-loop pumping units from 60 to 91 m³/h
-
Advanced control systems
Highlights
Jobsites with logistical constraints and the need for both transport and pumping with a single vehicle.
- Carbotech on the last 2 sections
- Minimum opening height 8.4 m
- Fixed rear stabilizers, 2.7 m
- 5" piping
